      Products and Applications

     Process Trend

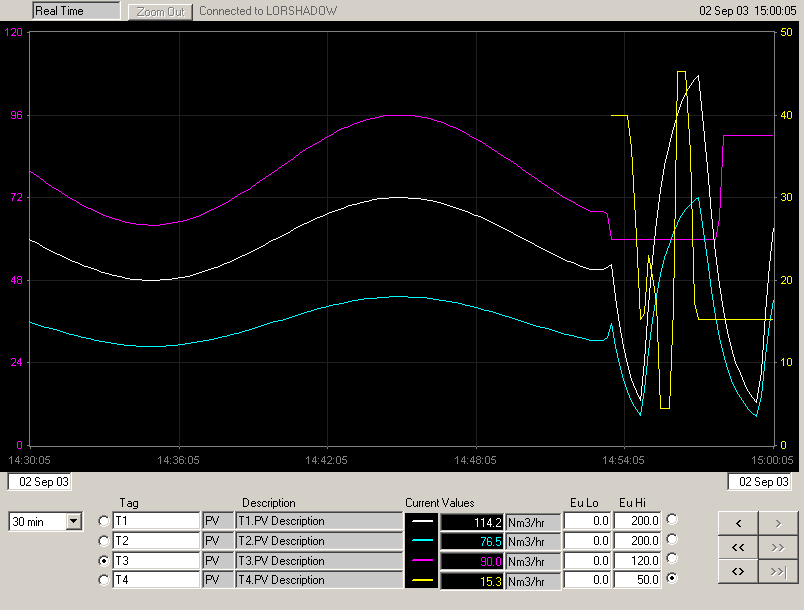

    The Process IT Development Process Trend is an Active X Control (OCX) that can be embedded within an operator graphic or web page to provide both real-time and historical trending.

     Features

    • Real time trending, with 1 second resolution
    • Historical trending from Honeywell PHD
    • Zoom-In with automatic data refresh

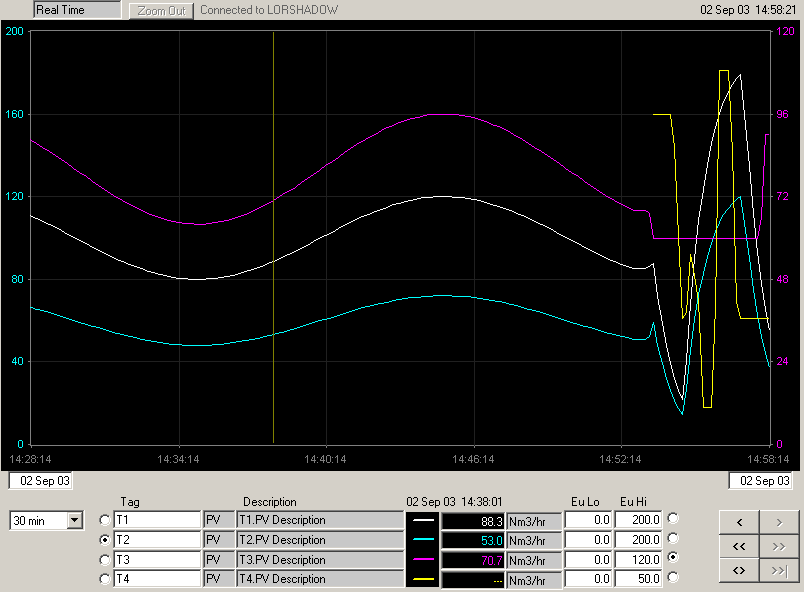

    • Vertical hairline cursor
    • Numeric display of either current (real-time) values or vertical cursor values
    • Wide selection of timebases (configurable) and historical data types (snapshots or averages)
    • Colour-coded left and right axes



     Installed Base

    • Total Lindsey Oil Refinery, Immingham UK


     Options

    • Web Enabling. This allows the trend to use a Web Server as its data source. This has two advantages:
      • The Trend OCX can be embedded in a web page, so that PHD trend data can be viewed on the corporate intranet. This requires that the firewall between the DCS and the office network be set up to allow HTTP traffic.
      • This can give cost savings by reducing the number of PHD client licences required
    • Mini Version. This presents only the graphical area of the chart, with the axes and numerical data being hidden. This makes it ideally suited for embedding in a process graphic


     Detailed Description and Download
    A demonstration version of the Process Trend OCX, and a detailed description of the installation and integration is available in the Process Trend area of the site.
